com.sygic.sdk.map.MapFragment Class Reference

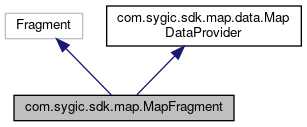

Inheritance diagram for com.sygic.sdk.map.MapFragment:

Collaboration diagram for com.sygic.sdk.map.MapFragment:

Public Member Functions
void	onCreate (@Nullable Bundle savedInstanceState)
View	onCreateView (@NonNull LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState)
void	onInflate (final Context context, final AttributeSet attrs, final Bundle savedInstanceState)
void	onSaveInstanceState (@NonNull final Bundle outState)
void	onViewStateRestored (@Nullable final Bundle savedInstanceState)
void	onStart ()
void	onResume ()
void	onPause ()
void	onStop ()
void	onDestroyView ()
void	onDestroy ()
void	onDetach ()
void	getMapAsync (final OnMapInitListener onMapInitListener)
MapView	getMapView ()
MapView.MapDataModel	getMapDataModel ()
Camera.CameraModel	getCameraDataModel ()

Static Public Member Functions
static MapFragment	newInstance (final @GlSurfaceListenerFactory.Type int surfaceType)
static MapFragment	newInstance (@Nullable final CameraState initialCameraState)
static MapFragment	newInstance (@Nullable final List< String > mapSkins)
static MapFragment	newInstance (final @GlSurfaceListenerFactory.Type int surfaceType, @Nullable final CameraState initialCameraState, @Nullable final List< String > initialSkins)

Static Protected Member Functions
static< T extends MapFragment > T	newInstance (final Class< T > cls, final @GlSurfaceListenerFactory.Type int surfaceType, @Nullable final CameraState initialCameraState, @Nullable final List< String > initialSkins)

Detailed Description

A fragment class that automatically creates a Map.

Member Function Documentation

getCameraDataModel()

Camera.CameraModel com.sygic.sdk.map.MapFragment.getCameraDataModel

(

)

Implements com.sygic.sdk.map.data.MapDataProvider.

getMapAsync()

void com.sygic.sdk.map.MapFragment.getMapAsync

(

final OnMapInitListener

onMapInitListener

)

Parameters

onMapInitListener

Listener notified about map object changes Returns the map object when it is ready via OnMapInitListener

getMapDataModel()

MapView.MapDataModel com.sygic.sdk.map.MapFragment.getMapDataModel

(

)

Called by MapView to obtain the model

Called after MapFragment is attached to Activity

Returns

provider to be used by MapView

Implements com.sygic.sdk.map.data.MapDataProvider.

getMapView()

MapView com.sygic.sdk.map.MapFragment.getMapView

(

)

Returns

The map object. Can be null if is called before map was successfully initialized Returns the map object which is used with map interaction.

newInstance() [1/5]

static MapFragment com.sygic.sdk.map.MapFragment.newInstance ( @Nullable final CameraState  initialCameraState )

static

Create new fragment and set initial camera state.

In initial camera state you can set values such as position, zoom and tilt for first map rendering. For all options see CameraState

Parameters

initialCameraState

initial state of camera

newInstance() [2/5]

static MapFragment com.sygic.sdk.map.MapFragment.newInstance ( @Nullable final List< String >  mapSkins )

static

Create new fragment and set initial map skins.

You can send a list of skins which will be applied to map during creation

Parameters

mapSkins

initial skins

newInstance() [3/5]

static MapFragment com.sygic.sdk.map.MapFragment.newInstance ( final @GlSurfaceListenerFactory.Type int  surfaceType )

static

Create new fragment and set the gl surface type for creating OpenGL surface. This can be also set in xml via app:sygic_gl_surfaceType="TEXTURE_VIEW"

Available values for gl surface type are: GlSurfaceListenerFactory.Type#SURFACE_VIEW for android.view.SurfaceView GlSurfaceListenerFactory.Type#TEXTURE_VIEW for android.view.TextureView Default value is TEXTURE_VIEW.

Parameters

surfaceType

Gl surface type for creating OpenGL surface

newInstance() [4/5]

static MapFragment com.sygic.sdk.map.MapFragment.newInstance ( final @GlSurfaceListenerFactory.Type int  surfaceType, @Nullable final CameraState  initialCameraState, @Nullable final List< String >  initialSkins  )

static

Create new fragment and set the gl surface type for creating OpenGL surface and initial camera state.

Available values for gl surface type are: GlSurfaceListenerFactory.Type#SURFACE_VIEW for android.view.SurfaceView GlSurfaceListenerFactory.Type#TEXTURE_VIEW for android.view.TextureView Default value is TEXTURE_VIEW.

In initial camera state you can set values such as position, zoom and tilt for first map rendering. For all options see CameraState

Parameters

surfaceType	Gl surface type for creating OpenGL surface
initialCameraState	initial state of camera

newInstance() [5/5]

static <T extends MapFragment> T com.sygic.sdk.map.MapFragment.newInstance ( final Class< T >  cls, final @GlSurfaceListenerFactory.Type int  surfaceType, @Nullable final CameraState  initialCameraState, @Nullable final List< String >  initialSkins  )

staticprotected

onCreate()

void com.sygic.sdk.map.MapFragment.onCreate

(

@Nullable Bundle

savedInstanceState

)

onCreateView()

View com.sygic.sdk.map.MapFragment.onCreateView	(	@NonNull LayoutInflater	inflater,
		@Nullable ViewGroup	container,
		@Nullable Bundle	savedInstanceState
	)

Called when this fragment is first attached to its Activity. Automatically starts to initialize the MapEngine for later use.

onDestroy()

void com.sygic.sdk.map.MapFragment.onDestroy

(

)

onDestroyView()

void com.sygic.sdk.map.MapFragment.onDestroyView

(

)

Called when the view previously created by onCreateView(LayoutInflater, ViewGroup, Bundle) has been detached from this fragment. The MapView object created earlier will detach itself of its associated Map instance.

onDetach()

void com.sygic.sdk.map.MapFragment.onDetach

(

)

onInflate()

void com.sygic.sdk.map.MapFragment.onInflate	(	final Context	context,
		final AttributeSet	attrs,
		final Bundle	savedInstanceState
	)

onPause()

void com.sygic.sdk.map.MapFragment.onPause

(

)

onResume()

void com.sygic.sdk.map.MapFragment.onResume

(

)

onSaveInstanceState()

void com.sygic.sdk.map.MapFragment.onSaveInstanceState

(

@NonNull final Bundle

outState

)

onStart()

void com.sygic.sdk.map.MapFragment.onStart

(

)

onStop()

void com.sygic.sdk.map.MapFragment.onStop

(

)

onViewStateRestored()

void com.sygic.sdk.map.MapFragment.onViewStateRestored

(

@Nullable final Bundle

savedInstanceState

)

---

The documentation for this class was generated from the following file:

• MapFragment.java
