SYMapObject Class Reference

Base class for all view objects created by client application which can be added and shown on map. In order to display the object on the map, the object needs to be added to an SYMapView by calling addMapObject:. More...

#import <SYMapObjects.h>

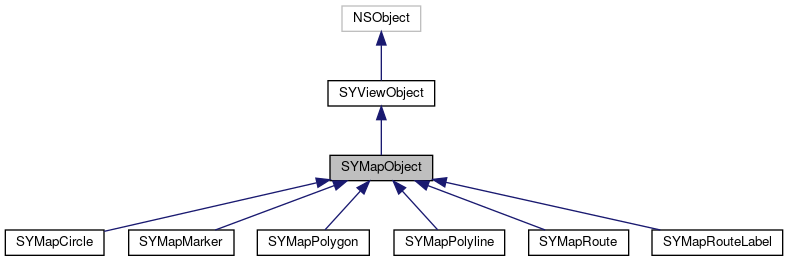

Inheritance diagram for SYMapObject:

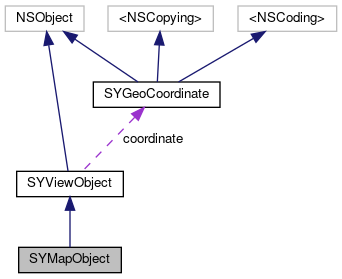

Collaboration diagram for SYMapObject:

Instance Methods
(instancetype)	- initWithCoordinate:type:payload: [implementation]
(Sygic::Map::MapObject *)	- sdkMapObject [implementation]
Instance Methods inherited from SYViewObject
(instancetype)	- initWithCoordinate:baseType: [implementation]
(instancetype)	- initWithCoordinate:baseType:payload: [implementation]

Properties
NSInteger	tag
	An integer that you can use to identify view objects in your application. Default value is 0. More...
SYMapObjectType	mapObjectType
	Map object type. See the available SYMapObjectTypes. More...
NSUInteger	zIndex
	Z-index (stacking order) for the SYMapObject. Objects with the highest value are placed at the top of the stacking order. More...
BOOL	visibility
	Visibility of the SYMapObject. Can be shown or hidden. More...
Properties inherited from SYViewObject
SYGeoCoordinate *	coordinate
	Geographical location of the SYViewObject. The meaning of the location for a particular object depends on that object's type. Objects that don't have a location will return nil. The meaning of the location for certain view objects is as follows: More...
SYViewObjectType	baseType
	Determines which type of this ViewObject it is. More...
id< NSCoding >	payload
	Optional payload for storing custom data. More...

Additional Inherited Members
Class Methods inherited from SYViewObject
(std::vector< uint8_t >)	+ serializePayload: [implementation]
(id< NSCoding >)	+ deserializePayload: [implementation]

Detailed Description

Base class for all view objects created by client application which can be added and shown on map. In order to display the object on the map, the object needs to be added to an SYMapView by calling addMapObject:.

Method Documentation

initWithCoordinate:type:payload:()

- (instancetype) initWithCoordinate: (SYGeoCoordinate *)  coordinate type: (SYMapObjectType)  type payload: (id< NSCoding >)  payload

implementation

sdkMapObject()

- Map:

implementation

Property Documentation

mapObjectType

- (SYMapObjectType) mapObjectType

readnonatomicassign

Map object type. See the available SYMapObjectTypes.

tag

- (NSInteger) tag

readwritenonatomicassign

An integer that you can use to identify view objects in your application. Default value is 0.

visibility

- (BOOL) visibility

readwritenonatomicassign

Visibility of the SYMapObject. Can be shown or hidden.

zIndex

- (NSUInteger) zIndex

readwritenonatomicassign

Z-index (stacking order) for the SYMapObject. Objects with the highest value are placed at the top of the stacking order.

---

The documentation for this class was generated from the following file:

• SYMapObjects.h
